Description
PARTE: 2CK-SS512TB

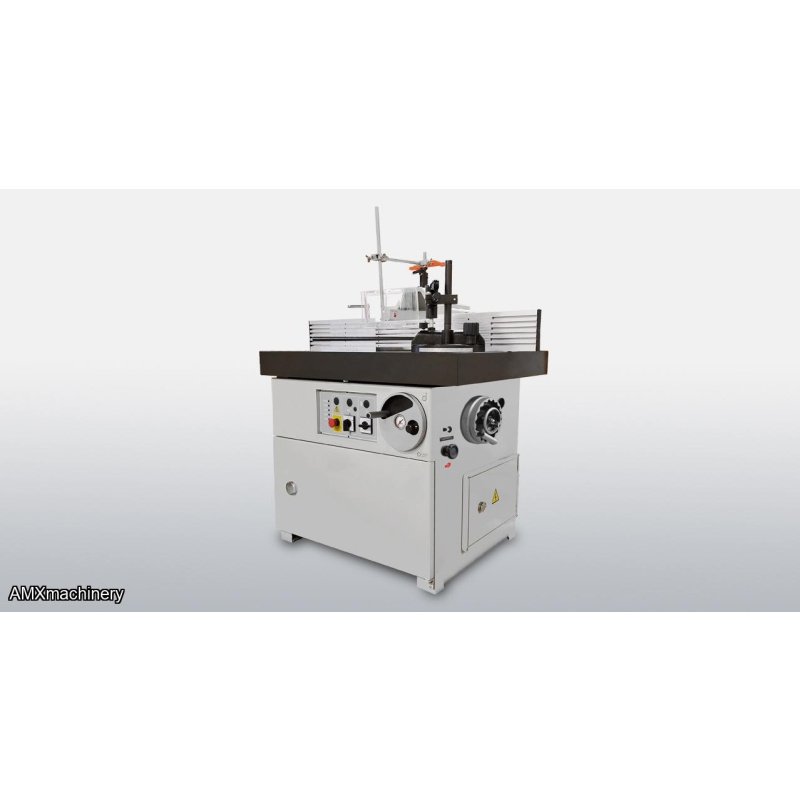

Is a ruggedly built shaper with refined features well suited for demanding production environments. Its’ versatile design makes it the ideal shaping solution for edge-profiling, door & furniture components, mouldings, tenoning, and more. The powerful dual direction 7.5HP driven spindle allows for optimum shaping even with large profiles. The heavy-duty cast-iron table and shaping column ensure maximum stability with superior vibration damping for optimum finish quality.
- Tilting spindle from -5° to +45°
- Cast iron ground & polished table with insert rings & t-slot for mitre / tenoning jig
- Precision ground and electronically balanced spindle
- V-belt drive with (5) spindle speeds is easily accessed from the front of the machine (3/4/6/8/1000 RPM)
- Electric spindle brake for added safety
- Spindle lock – with limit switch safety, machine will not start with lock engaged
- Micro spindle height adjustment with dial indicator for precise height adjustment
- 1 ¼” Interchangeable cutter spindle is standard
- Forward/reverse spindle rotation
- Adjustable “finger” type fence
- Independent micro-fence adjustment on both sidesPlug to accept Cantek Power Feeder and table is pre-drilled for
- mounding feeder base
Includes the following standard equipment:
- 1 ¼” spindle
- (1) 5” dust chute on guard & (1) 4” dust chute in the table
- Safety guard
- Mitre tenoning jig
|
Table size |
31 1/2 “ x 39.4” |
|
Tilting spindle |
-5° to +45° |
|
Spindle speeds (5) |
3000/4000/6000/8000/10000 RPM |
|
Spindle taper |
5 MT |
|
Spindle diameter |
1 ¼” |
|
Motor |
7.5 HP |
|
Largest diameter of cutter: |
|
|
Above table |
8 ¼” |
|
Below table |
13 ¼” |
|
Fence size |
6” x 43” |
|
Vertical spindle stroke |
7” |
|
Useable length of spindle |
5 ½” long |
|
Dust port |
(1)5” on guard, (1) 4” in table |
|
Total HP |
7.5 HP |
|
Net weight |
1034 lbs. |
|
Machine dimensions |
48.4” x 39.4” x 52 ¾” |
