Descripción
PARTE: 2CK-SS512CB
- 1 ¼” interchangeable spindle is standard (other sizes available)
- Large cast-iron table is ground and polished for maximum stability and durability
- Powerful 7.5 HP motor for even the most demanding profiling work
- Five spindle speeds can be easily adjusted to suit your tool diameter
- Electronic spindle brake for added safety and facilitates with fast changeover

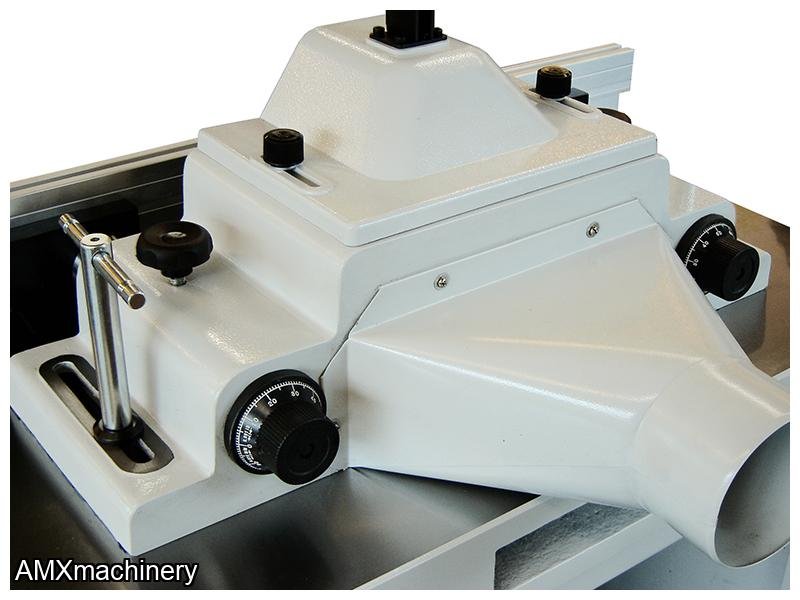

- Precision fence assembly with micro infeed and outfeed fence adjustment
- Finger style fence allows fence to be adjusted around the cutter for added safety and workpiece stability
- Cast iron ground & polished table with insert rings & t-slot for mitre / tenoning jig

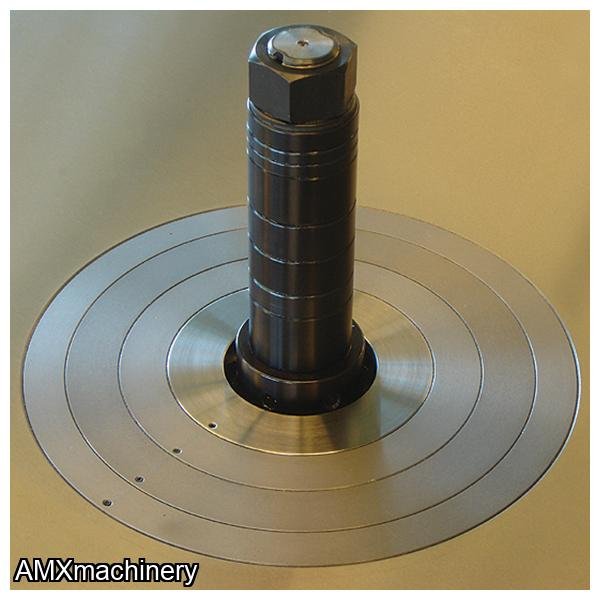

- Precision ground and electronically balanced spindle
- V-belt drive with (5) spindle speeds is easily accessed from the front of the machine (3/4/6/8/1000 RPM)
- Electric spindle brake for added safety
- Spindle lock – with limit switch safety, machine will not start with lock engaged
- Micro spindle height adjustment with dial indicator for precise height adjustment

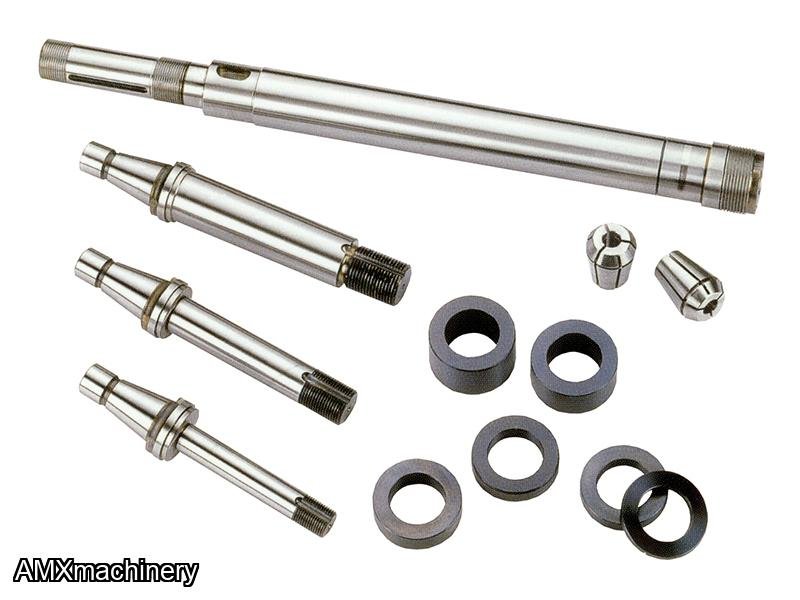

- 1 ¼” Interchangeable cutter spindle is standard
- Forward/reverse spindle rotation

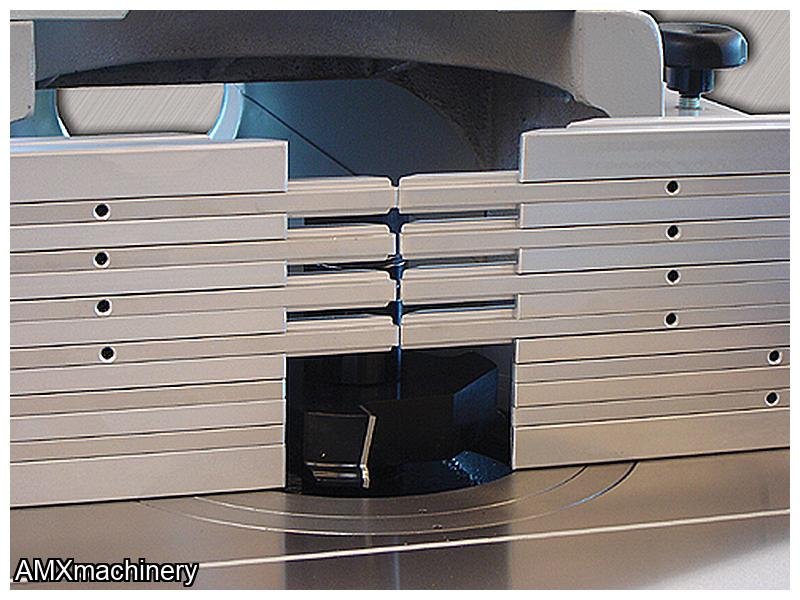

- Adjustable “finger” type fence
- Independent micro-fence adjustment on both sides
- Plug to accept Cantek Power Feeder and table is pre-drilled for mounding feeder base
Includes the following standard equipment:
- 1 ¼” spindle
- (1) 5” dust chute on guard & (1) 4” dust chute in the table
- Safety guard
- Mitre tenoning jig
|
Table size |
31 1/2 “ x 39.4” |
|
Spindle speeds (5) |
3000/4000/6000/8000/10000 RPM |
|
Spindle taper |
5 MT |
|
Spindle diameter |
1 ¼” |
|
Motor |
7.5 HP |
|
Largest diameter of cutter: |
|
|
Above table |
8 ¼” |
|
Below table |
13 ¼” |
|
Fence size |
6” x 43” |
|
Vertical spindle stroke |
7” |
|
Useable length of spindle |
5 ½” long |
|
Dust port |
(1)5” on guard, (1) 4” in table |
|
Total HP |
7.5 HP |
|
Net weight |
1034 lbs. |
|
Machine dimensions |
48.4” x 39.4” x 52 ¾” |
