Identificador: 1821
Abierta
Descripción

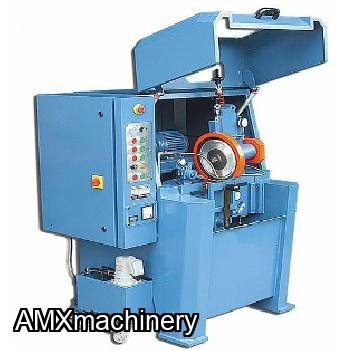

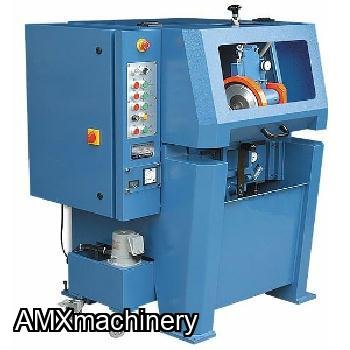

PARTE: 2TA-TG-225B - AFILADORA PARA SIERRA DE VAIVEN - BANDA RECTA
FEATURES
- A Peripheral Equipment for Frame Saw
- Designed to Maximize Blade Service Life While Minimizing Blade Consumption.

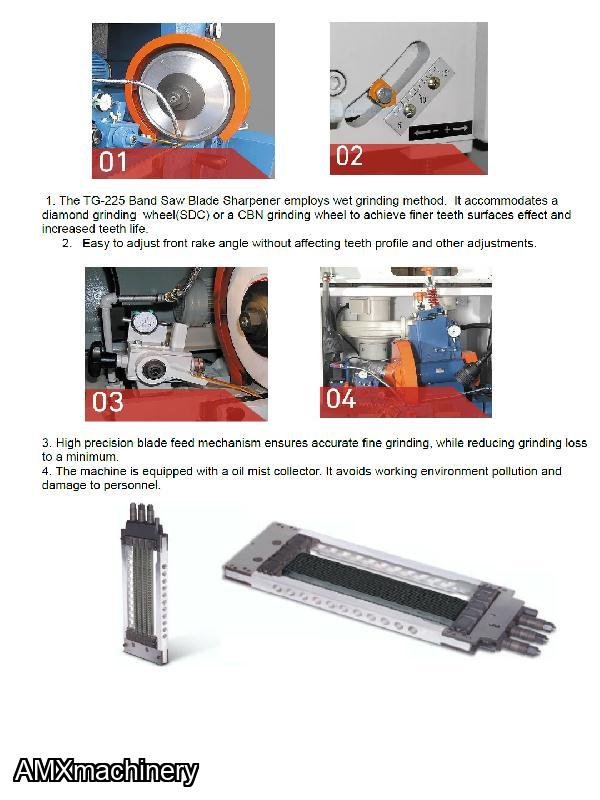

- The wet grinding feature assures extremely fine finish on teeth surfaces and greatly extends cutting period of saw blade.
- Very precise grinding module.
- Exact guiding of saw blades guarantees a minimum satellite loss.
- Grinding amount adjustment is accurately indicated by dial gauges.
- Variable grinding speed is controlled by frequency inverter.
- The micro-computer control provides automatic and humanized operations.
- Electronic parts and circuit design meet CE standards.
- Electronic parts feature multiple interference resistances and protections.
|
Model
|
TG-225
|
|
Maximum blade thickness |
2 mm |
|
Blade width |
35 – 40 mm |
|
Maximum blade length |
Unlimit |
|
Maximum tooth pitch |
20 mm |
|
Maximum tool height |
5 mm |
|
Front rake angle |
5 – 15 degree |
|
Working speed |
1.4 – 6.4 sec/tooth |
|
Motor |
1 HP +1/4 HP + 1/8 HP |
