Descripción

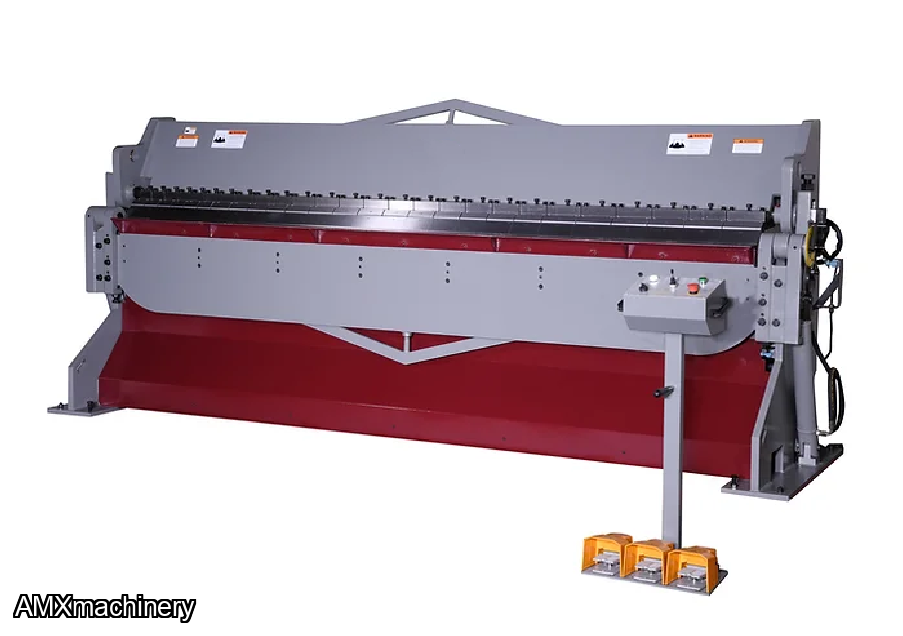

CORTADORA DE METAL HIDRAULICA Y FRENO 6 PIES PARTE: 2GM-HBB-0610
Our 6 FT Sheet Metal Hydraulic Box and Pan Brake is a heavy duty hydraulic box and pan brake; constructed of steel for maximum rigidity. Equipped with a robust and quiet German Rexroth hydraulic logic system to clamp your workpiece with ease. Our box and pan brakes are made for simple operation with a conveniently located control panel to place on either side of the hydraulic brake.
- Taiwan Machines
- ISO 9001 certified

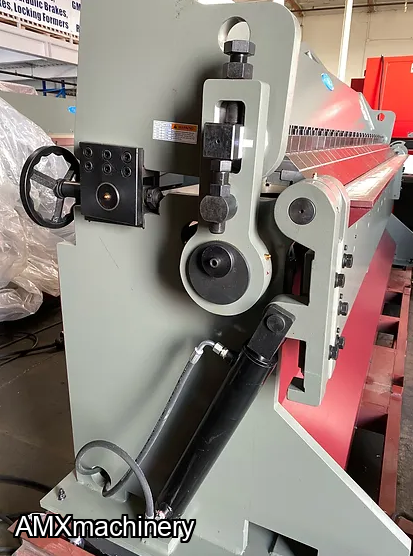

- Hydraulic adjustment for opening
- Hydraulic power clamping for workpiece
- 26” manual back gauge with handwheel
- 1” manual beam adjustment ( front and back )
- Min. reverse bend is ¾” (20mm)
- Heavy welded all steel construction for maximum rigidity
- Germany Rexroth Hydraulic logic system centrally located and quiet
- A wide guidebody ensures strong, stable, smooth & accurate movement

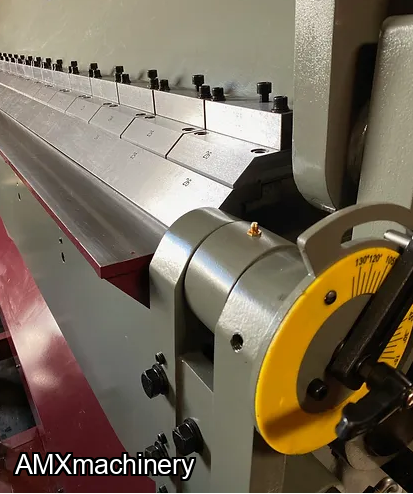

- Total pieces fingers assortment:
- 3”/6pcs, 4”/3pcs, 5”/6pcs, 6”/2pcs

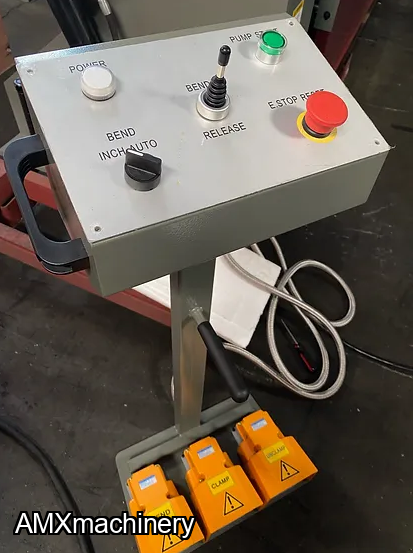

- Central control panels on each side for convenient operation
- Jog and auto operation modes
- Overload protection and disconnect switch
- Assorted fingers
- 26” manual back gauge with one side handwheel operation
- Angle set up dial
- Hydraulic clamping system
- Foot pedal control for hydraulic clamping & auto mode
Max Bending Length: | 6’ |
Bending Capacity: Mild Steel (hot roll) 60k PSI Stainless Steel 85k PSI soft aluminum 28K PSI Minimum material thickness |
10 Ga. 12 Ga. 1/4" 26Ga. |
Opening hem max thickness Closing hem max thickness | 20Ga x 6' 22Ga x 6' |
Bend Degree: | 135 |
Max. Box Depth: | 153mm=6.02” |
Large Beam Opening: | 3" |
Manual Back Gauge: | 26” |
Oil Tank Gal. | 12 Gal. |
Hydraulic Oil: | Shell #68 or equivalent |
Main Motor | 5 HP 3 Phase Prewired: 220VAC 15A Optional: 440VAC 10A |
Weight | 5,000 lbs. |
Shipping Weight: | 5,050 lbs. |
Overall Dimensions | 91" x 46" x 67" |
Shipping Dimensions: | 105” x 40” x 66” |
