Identificador: 170
Abierta
Descripción

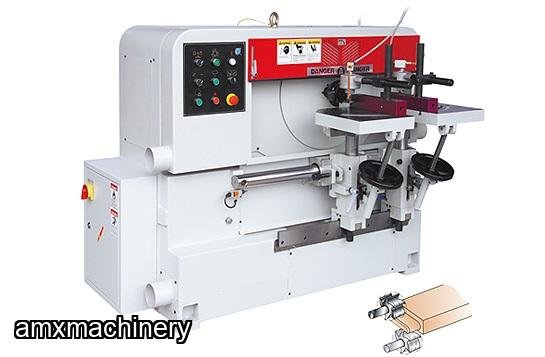

PARTE: 2TA-SET-100 - 3YC-YRT-115 - ESPIGADORA - 2 MESAS - AMX MACHINERY
Nueva con garantia
- Built with two working tables for high efficiency operations.
- Table longitudinal traverse is pneumatic operated for smooth cutting.
- Tenon’s width is easily adjustable by hand wheel.
- Convenient tenon depth adjustment from outside without removing covers.
- Table can be tilted to 20 degrees at each side for angular tenon.
- Cutter moving speed is infinitely adjustable to achive the best results.
- Pneumatic hold down clamps and pneumatic cutting movement for smooth finish.
- Fully automatic tenon produce cycles.
- Automatic lubrication system.
- Powerful industrial motor for maximum cutting capacity.
- Precision sealed long-life bearing.
- Heavy cast iron frames and table for durability usage.
SPECIFICATIONS | SET-100 | CM-100 |
Max. Width of Tenon (Mortise) | 4" | 4" |
Max. Depth of Tenon (Mortise) | 2" | 2-3/8" |
Oscillation Rate | 13 ~ 80 PCS/MIN. | 7 ~ 200 STROKE/MIN. |
Table Tilts | 20° | 20° |
Spindle Drive Motor | 3 HP | 3 HP |
Cutter Feed Motor | 1 HP | ½ HP |
Cutter Speed | 9500 RPM | 9500 RPM |
Table Vertical Adjustment | 3" | 3" |
Max. Thickness | 4" | 4" |
Max. Stoke Width | 5" | 4" |
Air Pressure | 80 PSI | 80 PSI |
Machine Size | 63" x 51" x 51" | 51" x 47" x 47" |
N.W. | 2200 LBS | 1540 LBS |
G.W. | 2640 LBS | 1880 LBS |
