Identificador: 2458
Abierta
Descripción

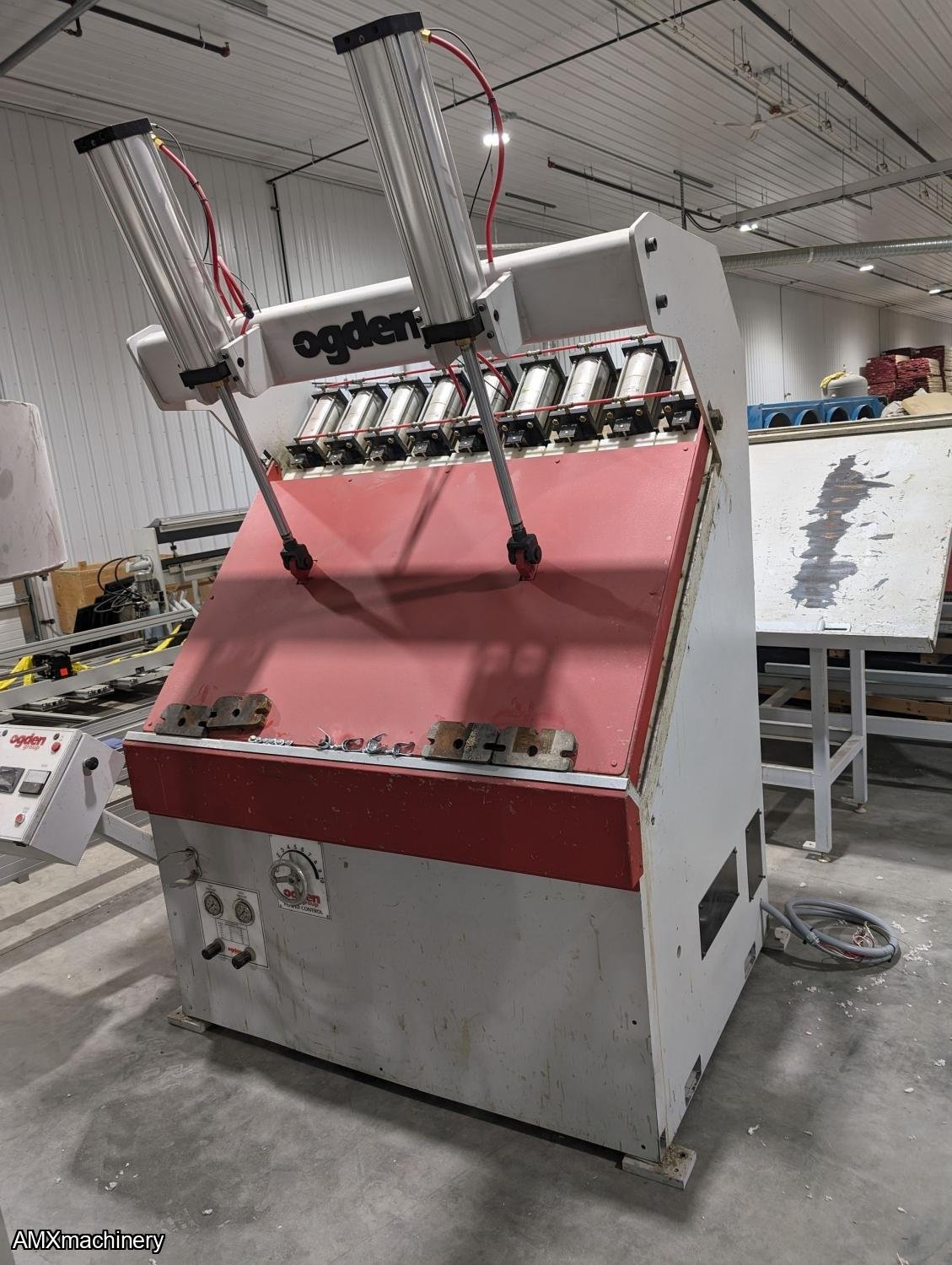

PARTE: 12572 - PRENSA DE RADIO FRECUENCIA - OGDEN
USADA - BUENAS CONDICIONES
Curing area: 36” x 60” x 2” thick.
Clamping pressure is applied by multi-power (dual pistons on a common shaft) pneumatic cylinders to maximize pressure while relying on standard plant pressures. Unlike presses without multi-power cylinders, which require booster compressors, the Model SL36x60 reaches full capacity at 100-psi plant air pressure.

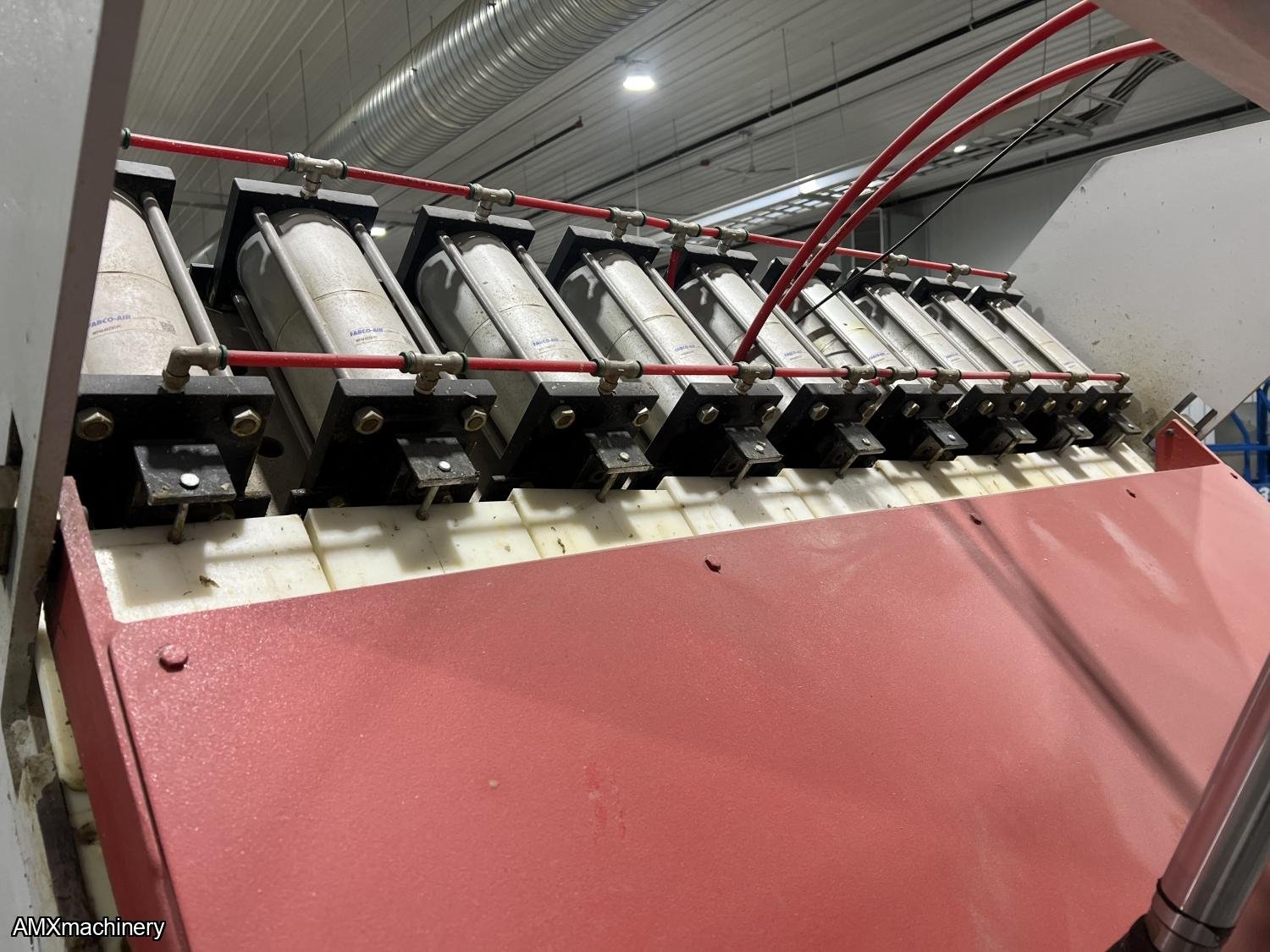

Edge pressure is applied by eight (8) each pusher shoes, each with a 4” bore x 4” stroke twin-piston multi-power pneumatic cylinders.
Top platen pressure is applied by two (2) 5” diameter x 16” stroke pneumatic cylinders through a cantilever arm that keeps the footprint to a minimum while still allowing the operator full access to the platen area.

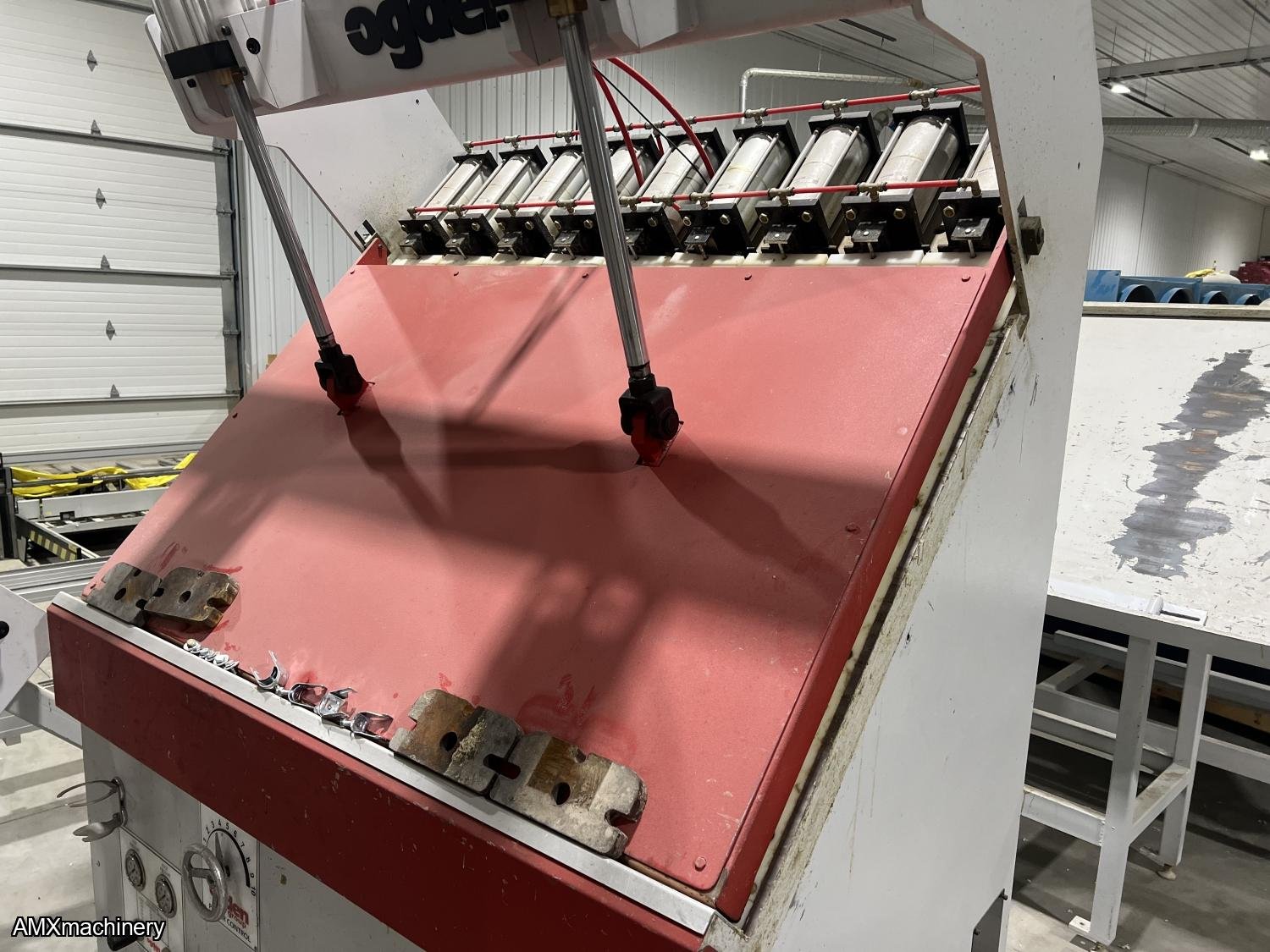

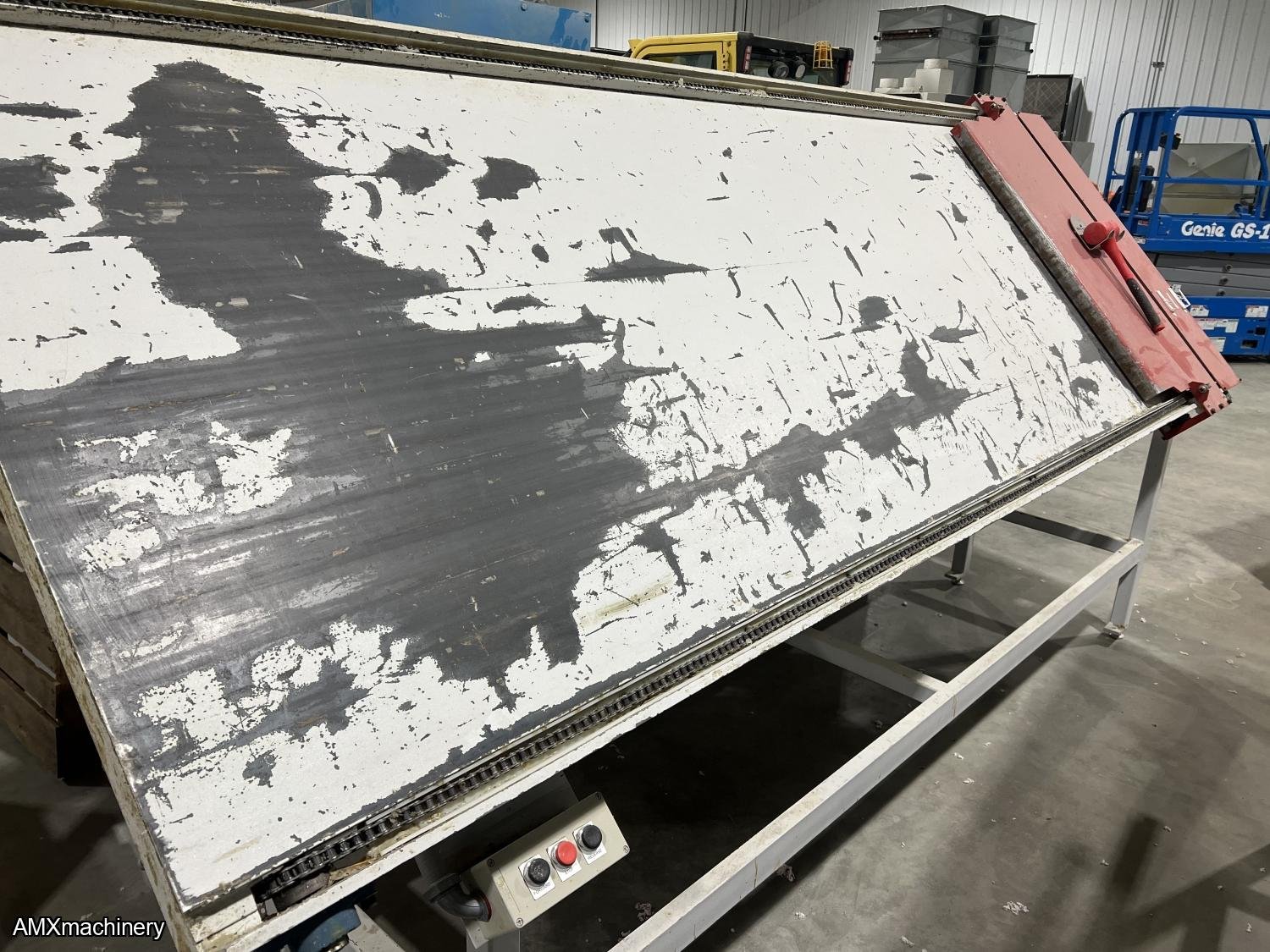

The platen is set at a 45-degree angle and the top platen opens wide; allowing the operator to step inside the press for ergonomic and accurate parts placement.
The internal solid state RfsProtech 6KW Generator cures approximately 600 square inches of glue line per minute.
The Generator features solid state rectifiers and all aluminum cabinet for maximum conductivity and superior performance.
Two-hand no-tie-down safety controls for closing the top platen.

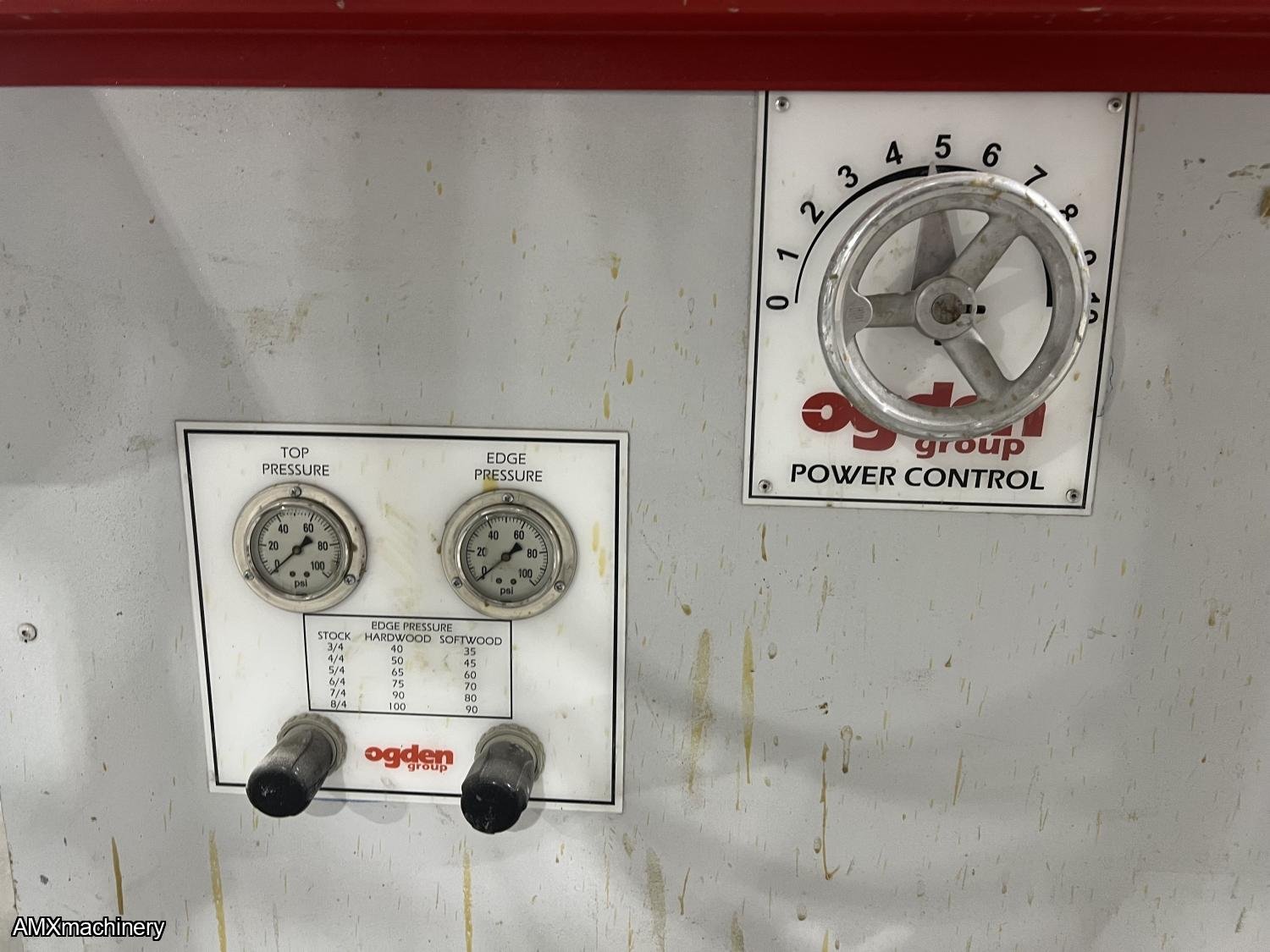

Controls are simple to understand, and are complete with the required push-buttons, switch, meters, digital operator display, and on-screen troubleshooting diagnostics.
The machine is controlled by a PLC for dependability and efficient maintenance. All controls will be provided for safe and efficient operation. The operator screen permits efficient operation, and the included press diagnostics screens assist in trouble-shooting when the need arises.
Proper interfaces will be provided for operational signals and emergency system stop.

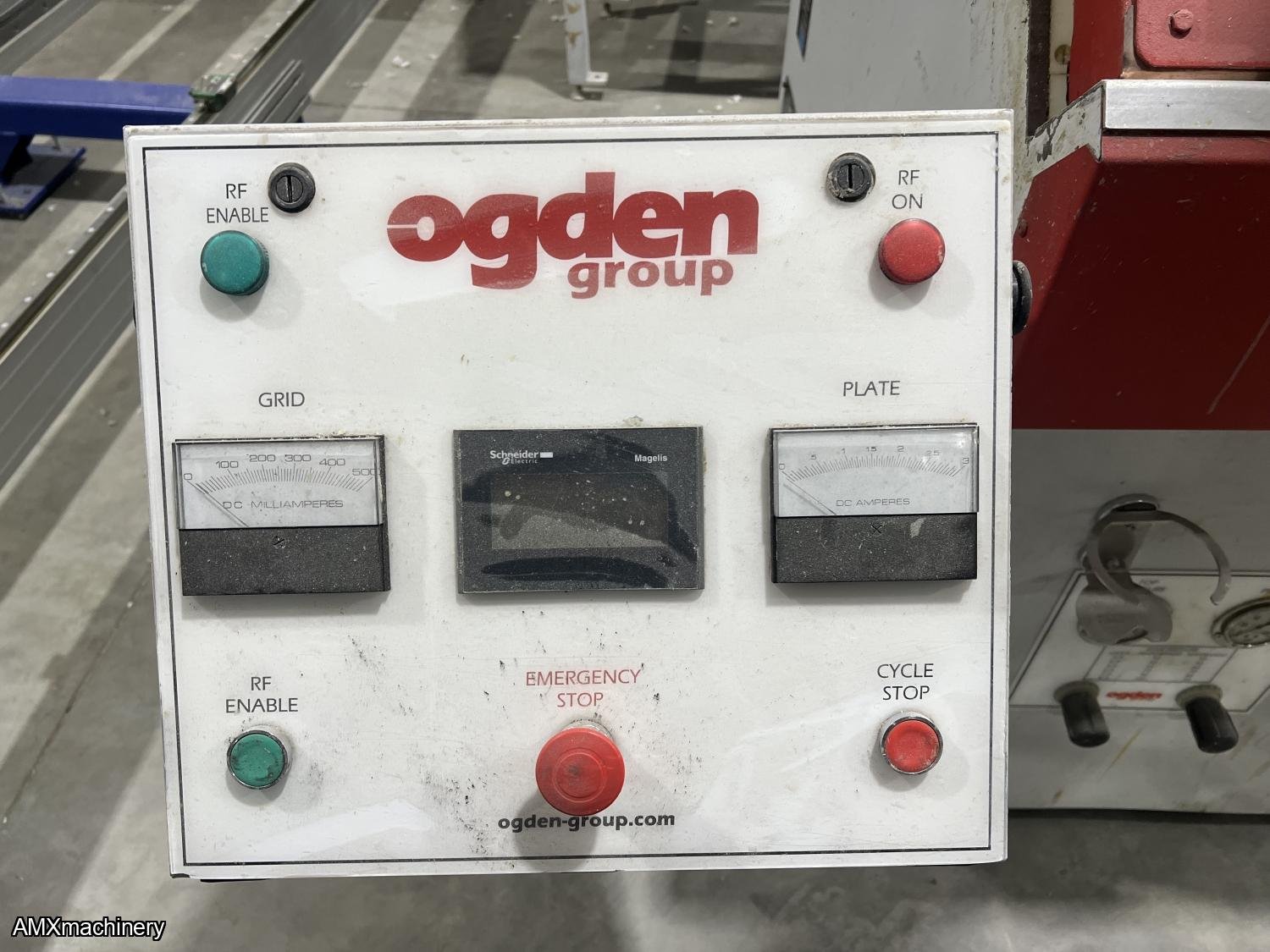

All necessary RF controls, including buttons, meters, and PLC operator interface panel are mounted on a control panel attached to the left front of the press.
Interlocked top platen and safety switches on all access doors insure operator safety.
Power requirements are 480 volt, 60 cycle, 3 phase electric.

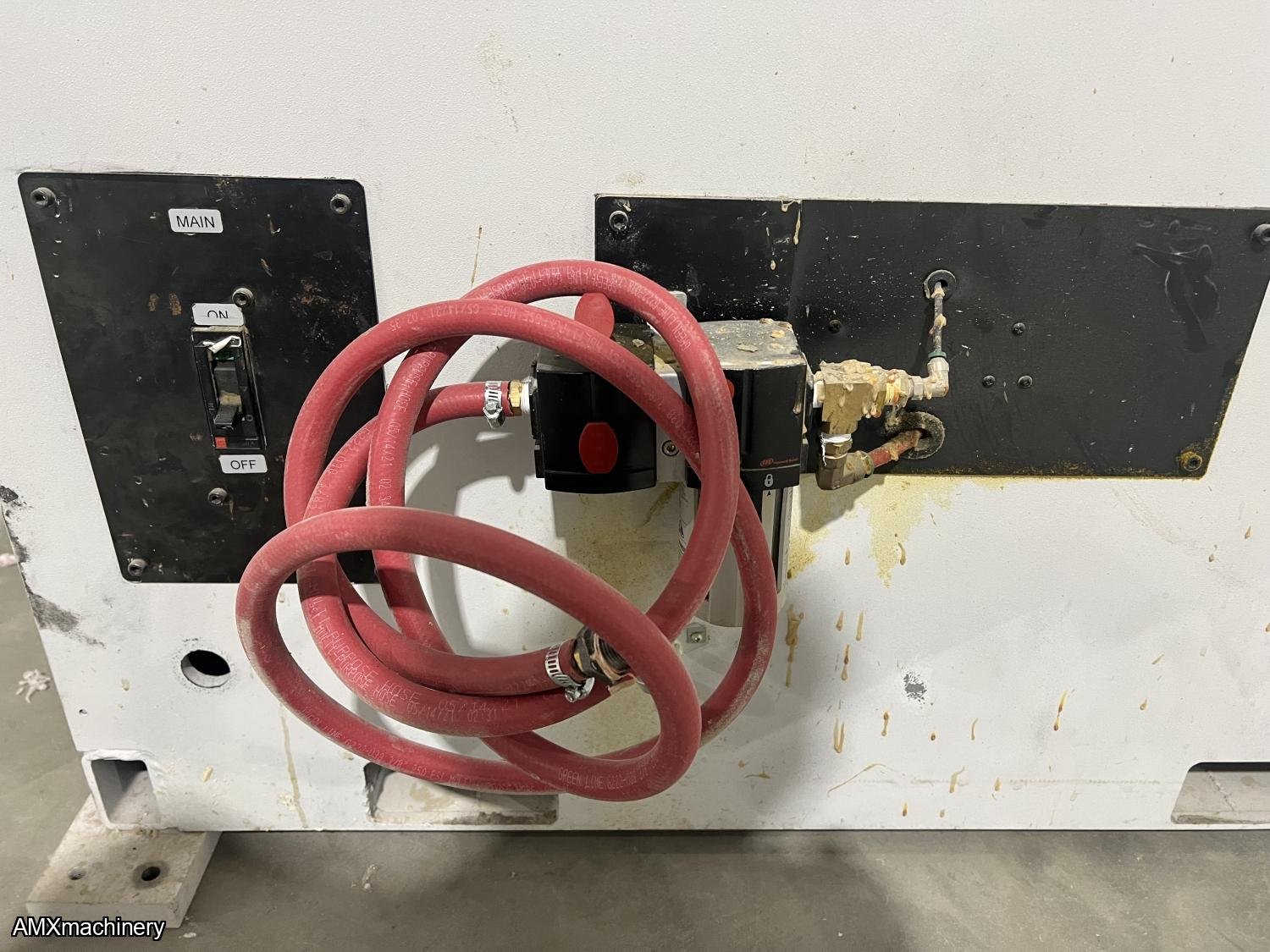

Circuit breaker protection is provided. A service disconnect is required for safety, but is not provided.

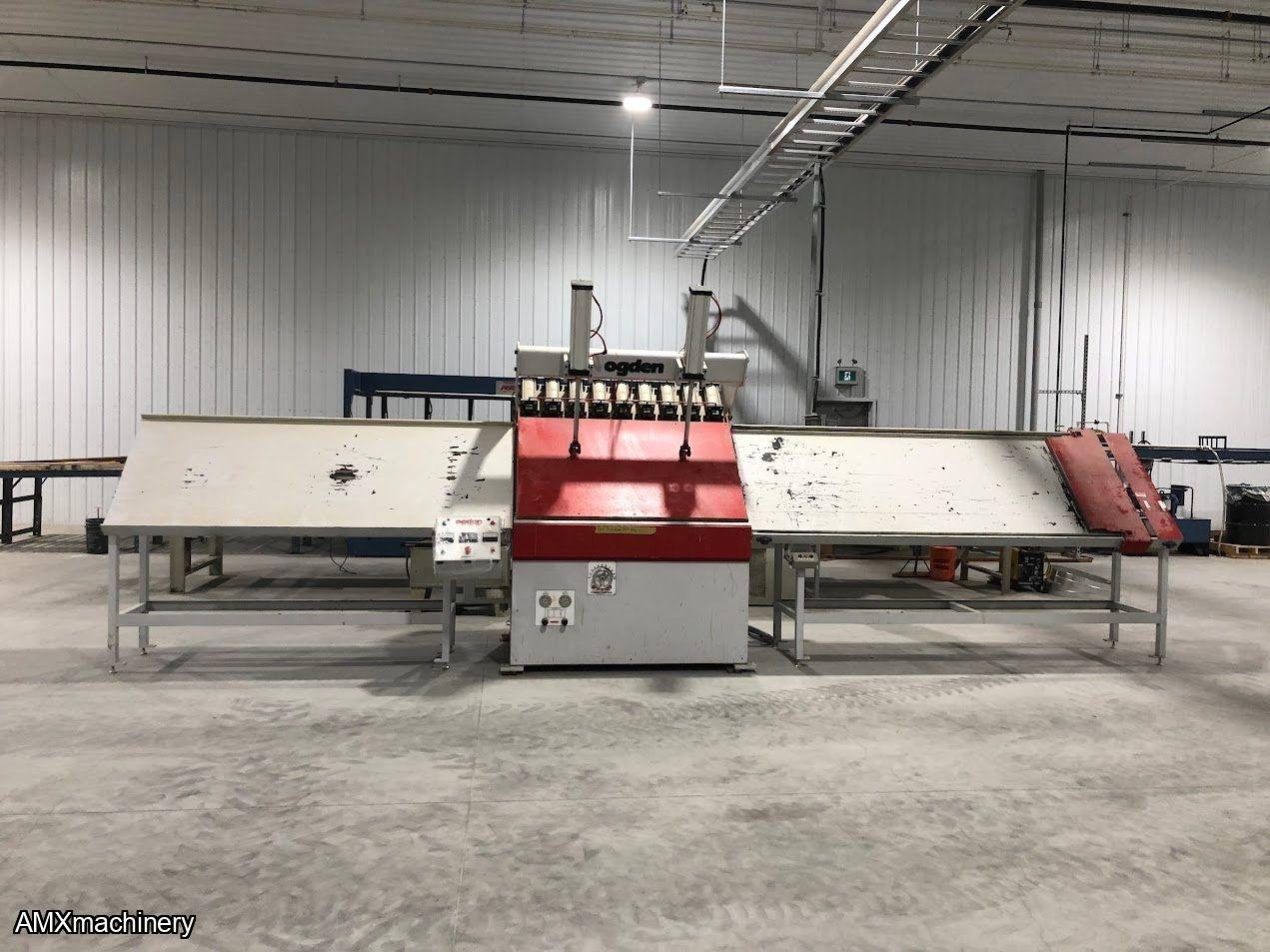

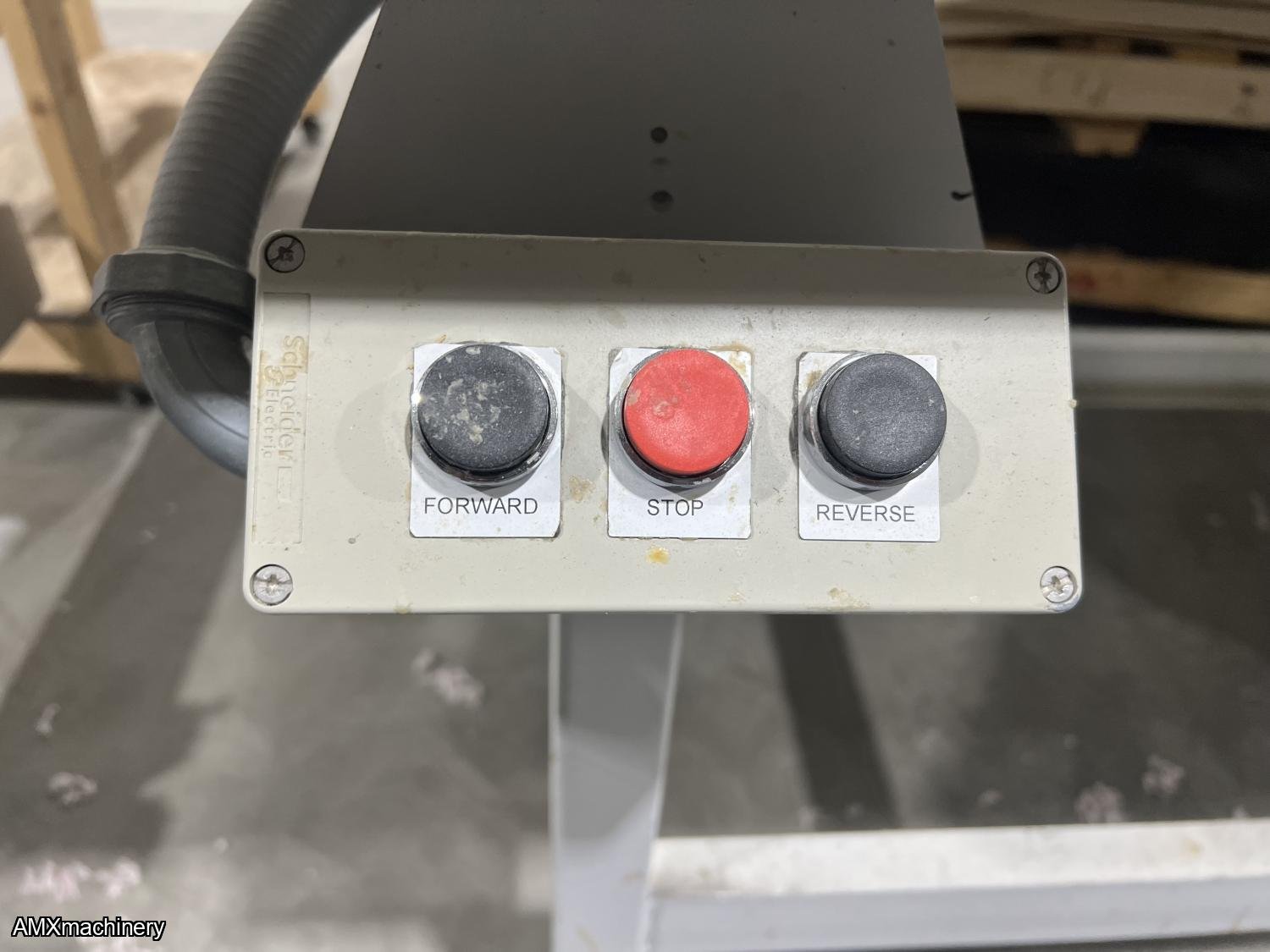

Powered In-Feed table with motor and controls

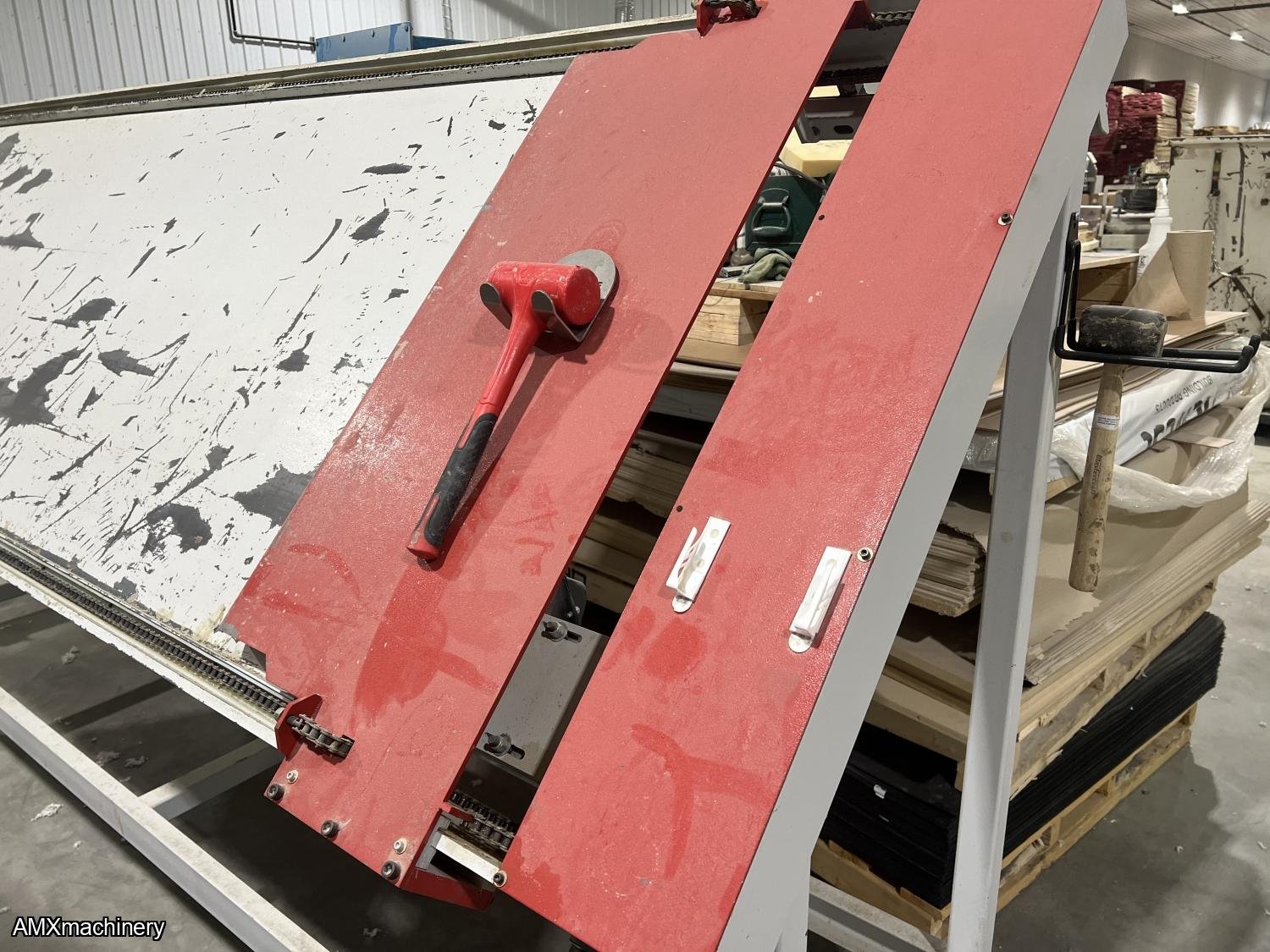

Out-feed steel deck
Voltage 480 volts 60 Hz
