Identificador: 1929
Abierta
Descripción

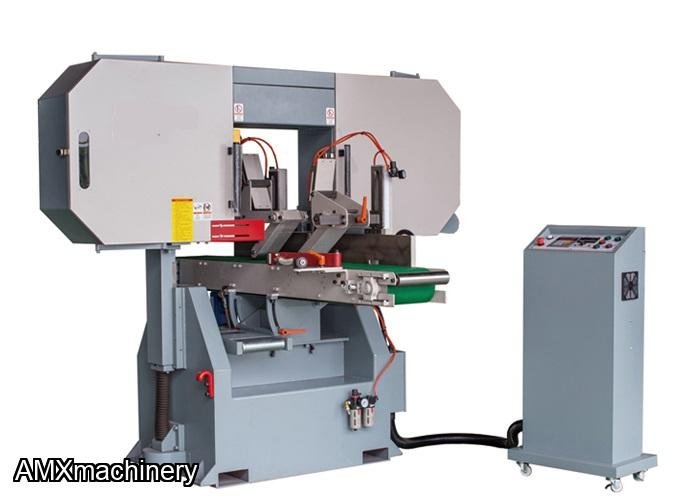

PARTE: 3SW- HBR-300 - REASERRADORA HORIZONTAL - 30 HP - 10.5” ANCHO
NUEVA CON GARANTIA
Specifications
Maximum Material Size (W X H): 12"x 12 "(300x300 mm)
Distance From Blade To Conveyor: 5/64"~10-5/8"(2~270mm)
Minimum Cut Piece: 2mm
Saw Wheel Diameter: 28" x2(700mm x2)
Sawblade Length: 196"(4980~4990mm)
Sawblade Width: 2" OPTION 3"(50mm OPTION 75mm)
Conveyor Belt Sizes(Wxl): 270 x 4200mm
Sawblade Speed: 25.4m/s
Feed Motor: 1HP WITH INVERTER
Feed Conveyor Tilt: 0~30 DEGREE
Feed Speed (Variable): 0~18 m/min
Conveyor Height From Floor: 40"(1016 mm)
Saw Wheel Motor: 20 HP
Blade Lift Motor: 1/2 HP
Dust Hood Outlet Diameter: ø4"x2
Machine Dimensions (L X W X H): 2235 x 2180 x 1880 mm
Packing Dimensions (L X W X H): 2450 x 2250 x 2200 mm
Net Weight: 1355KGS
Gross Weight: 1480KGS
STANDARD EQUIPMENT
1.HYDRAULIC BLADE TENSION SYSTEM
2.BLADE LIFT DIGITAL CONTROL
3.OIL MIST COOLING SYSTEM
4.SAWBLADE x 1 PC
5.TOOL BOX WITH SERVICE TOOLS
OPTION
1.PLC CONTROL WITH TOUCH SCREEN
